BRILLIANT ENGINEERING CAPABILITY
We focus extensive experience and strong engineering capabilities on your sanding jobs to ensure the solution is a perfect match to your sanding applications.
-
Digital readout controller
-
Automatic stop
-
Air jet cleaner
-
Belt oscillation controlled
-
Hydraulic conveyor driving
-
Cleaning brush
-
In-feed emergency brake
-
Emergency stop switch
-
Four lifting poles
-
Quick release locking handle
-
Conveyor belt positioning
-
Mirco-adjustment by hand wheel
-
Truly endless Italian belt
-
Amp and Volt meter
TWO HEADS OR THREE HEADS CONFIGURATION
-
Working Width from 610mm to 1300mm.
-
Two heads: 1st. and 2nd. are roller type is ideal for general sanding
-
Three heads: 1st. and 2nd. and 3rd. are roller type, it can do calibration and fine sanding in one pass.
The three head series consists of a contact drum at the first, second and third head, providing extremely fine finishing.
The head configuration can be manufactured according to the customer's requirements.
Two heads : AB TYPE
Three heads : AAB TYPE
Two heads : AA TYPE
Three heads : AAA TYPE
DIGITAL READOUT CONTROLLED
The conveyor raising and digital controlled. Specially designed numerical keys are accurate and easy to operate. Safety devices are provided at the infeed, the upper and lower limit end, providing a safeguard for the operator and machine.
AUTOMATIC STOP
Micro switches are fitted at both sides of the sanding belt to prevent the belt running from the track. The machine will stop automatically if there is no air supply, no sanding belt mounted, or if the belt becomes loose. Only the elevation driving motor will function. The machine will brake immediately if the sanding belt breaks during operation, providing maximum safety for operator and machine.
BELT CLEANING DEVICE
To ensure a clean and smooth grain surface on the abrasive belt, air is blown to thoroughly clean any dust.This greatly increases the belt's life. Once the conveyor starts, the device is also starts. A timer is equipped for controlling the sanding intervals. (Optional)
SANDING BELT OSCILLATION CONTROL
The sanding belt oscillation is controlled by a dust proof air eye. The sanding belt can oscillate in the event of power failure.
The oscillation range of the sanding belt is 15 - 20mm. The reverse and cross sanding on the panel creates a better clarity of grain, thus greatly extending the life of the sanding belt.
HYDRAULIC DRIVE CONVEYOR BELT
The super lightweight driving system is mounted at the end of the conveyor table, ensuring maximum feed accuracy and stability.
A powerful hydraulic driving system automatically adjusts to the correct pressure regardless of the panel weight or plate holding pressure. The system eliminates belt slipping or chattering while running. (Optional)
BRUSH ROLLER
Clear away the dust on the working piece in the final step.
Polishing roller is upon request. (Optional)

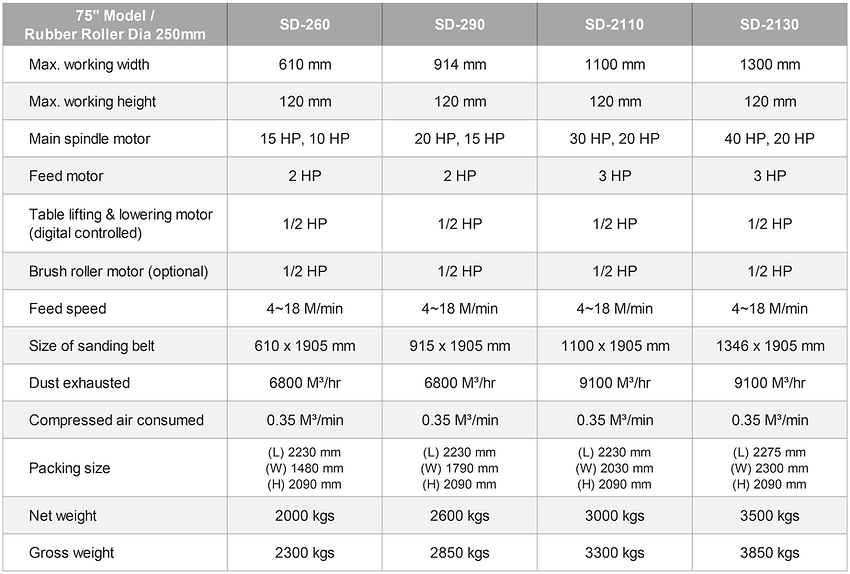

75'' Model
83'' Model
※Design and specifications are subject to change without prior notice.
83'' Model
103'' Model
※Design and specifications are subject to change without prior notice.
